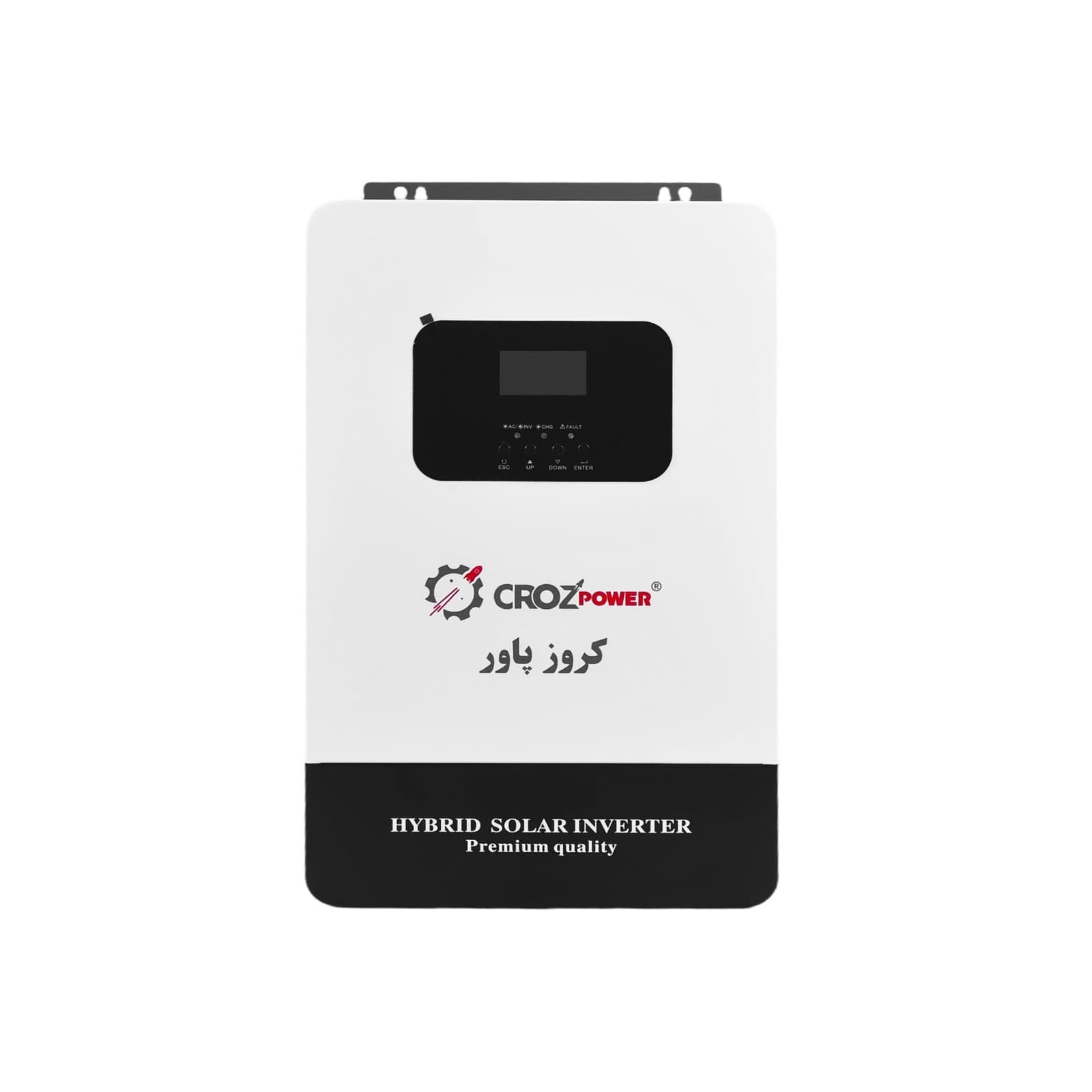

HYBRID SOLAR INVERTER
4.2KW 24V
Professional Series
High Efficiency
Cert. Performance
10-25 Year Warranty
Manufacturer Direct
Smart Monitoring
Real-time Analytics
Global Shipping
Secure Packaging
The Narrative
CROZPOWER
MODEL:4.2KW 24V
CAPACITY:4200VA/4200W PV&DC/AC:4500VA/4500W
OPERATING TEMPERATURE RANGE:-10~50C PROTECTION DEGREE:IP21 SOLAR MODE
SOLAR PANEL POWER:6500W MAX CHARGING CURRENT:120A MAX INPUT CURRENT:36A
NOMINAL INPUT CURRENT:27A
SOLAR VOLTAGE RANGE(Vmp):60-500VDC FULL LOAD MPPT RANGE:300-400VDC MAX SOLAR VOLTAGE:500VDC INVERTER MODE
BATTERY VOLTAGE RANGE:21-32VDC
MAX BATTERY DISCHARGE CURRENT:165A AC OUTPUT:230VAC,50/60HZ,18.3A 1 AC INPUT
AC CHARGER:27VDC,100A
AC INPUT:230VAC,50/60HZ,30A1
AC OUTPUT:230VAC,50/60HZ,18.3A 1 TWO LOAD OUTPUT POWER: FULL LOAD:4200W
MAXIMUM MAIN LOAD:4200W
MAXIMUM SECOND LOAD:4200W
SECOND LOAD CUT OFF VOLTAGE:22VDC SECOND LOAD RETURN VOLTAGE:26VDC CODE:95404-300-034
N.W:9.62 KG G.W:11.18 KG
SIZE:592*392*185 MM
Strictly technical inquiries only. Bulk orders available.
Tech Specs
No detailed specifications provided for this model yet.
Core Competencies
Extreme Durability
Constructed with premium materials to withstand harsh environmental conditions and prolonged exposure.
Seamless Integration
Engineered specifically to work within the CrozPower ecosystem for maximum unified efficiency.
Intelligent Management
Includes onboard logic for autonomous performance optimization and health monitoring.
Related Machinery
View Entire CollectionHYBRID SOLAR INVERTER

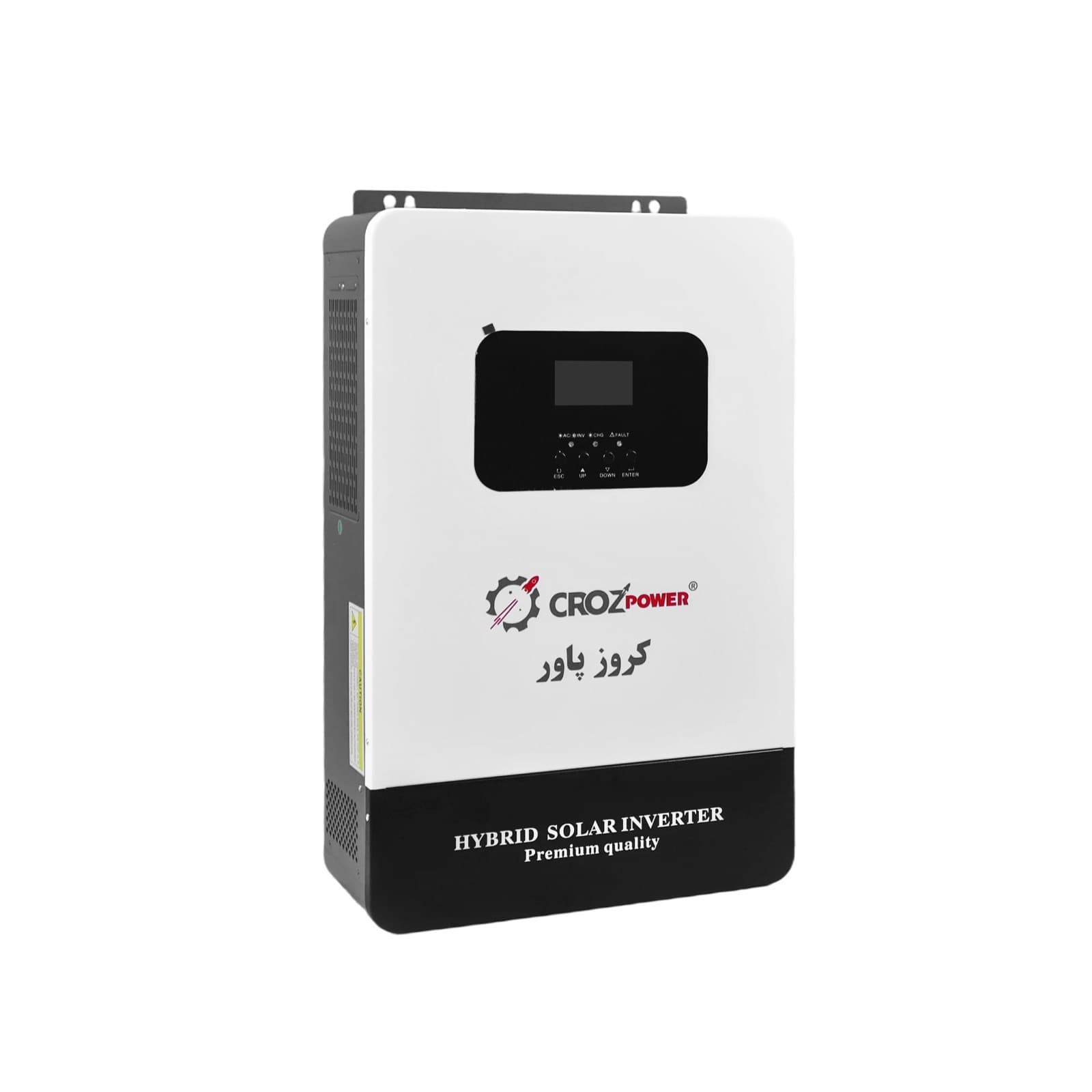

6.2KW 48V
CROZPOWER R
MODEL:6.2KW 48V
CAPACITY:6200VA/6200W PV&DC/AC:6500VA/6500W
OPERATING TEMPERATURE RANGE:-10~50"C PROTECTION DEGREE:IP21 SOLAR MODE
SOLAR PANEL POWER:8500W MAX CHARGING CURRENT:120A MAX INPUT CURRENT:36A
NOMINAL INPUT CURRENT:27A
SOLAR VOLTAGE RANGE(Vmp):60-500VDC FULL LOAD MPPT RANGE:360-430VDC MAX SOLAR VOLTAGE:500VDC INVERTER MODE
BATTERY VOLTAGE RANGE:42-64VDC
MAX BATTERY DISCHARGE CURRENT:143A AC OUTPUT:230VAC,50/60HZ,27A 1 AC INPUT
AC CHARGER:54VDC,100A
AC INPUT:230VAC,50/60HZ,40A 1 AC OUTPUT:230VAC,50/60HZ,27A 1 TWO LOAD OUTPUT POWER: FULL LOAD:6200W
MAXIMUM MAIN LOAD:6200W
MAXIMUM SECOND LOAD:6200W
SECOND LOAD CUT OFF VOLTAGE:44VDC SECOND LOAD RETURN VOLTAGE:52VDC CODE:95624-300-057
N.W:10.78 KG G.W:12.44 KG
SIZE:592*392*185 MM
HYBRID SOLAR INVERTER
HYBRID SOLAR INVERTER
2KVA 12V
CROZPOWER
MODEL:2KVA 12V CAPACITY:2000VA/1600W
OPERATING TEMPERATURE RANGE:-10~50C PROTECTION DEGREE:IP21 INVERTER MODE
DC INPUT:12VDC.150A
AC OUTPUT:230VAC,50/60HZ,7A,1 AC MODE
AC CHARGER:13.5VDC,60A
AC INPUT:230VAC,50/60HZ,10.5A,1 AC OUTPUT:230VAC,50/60HZ,7A,1 SOLAR MODE
SOLAR PANEL POWER:2000W MAX.CHARGING CURRENT:100A
SOLAR VOLTAGE RANGE(Vmp):30-500VDC BEST VOLTAGE RANGE(Vmp):300-400VDC MAX.SOLAR VOLTAGE:500VDC
N.W:5.93 KG G.W:7.20 KG SIZE:482*371*176 MM
HYBRID SOLAR INVERTER
HYBRID SOLAR INVERTER

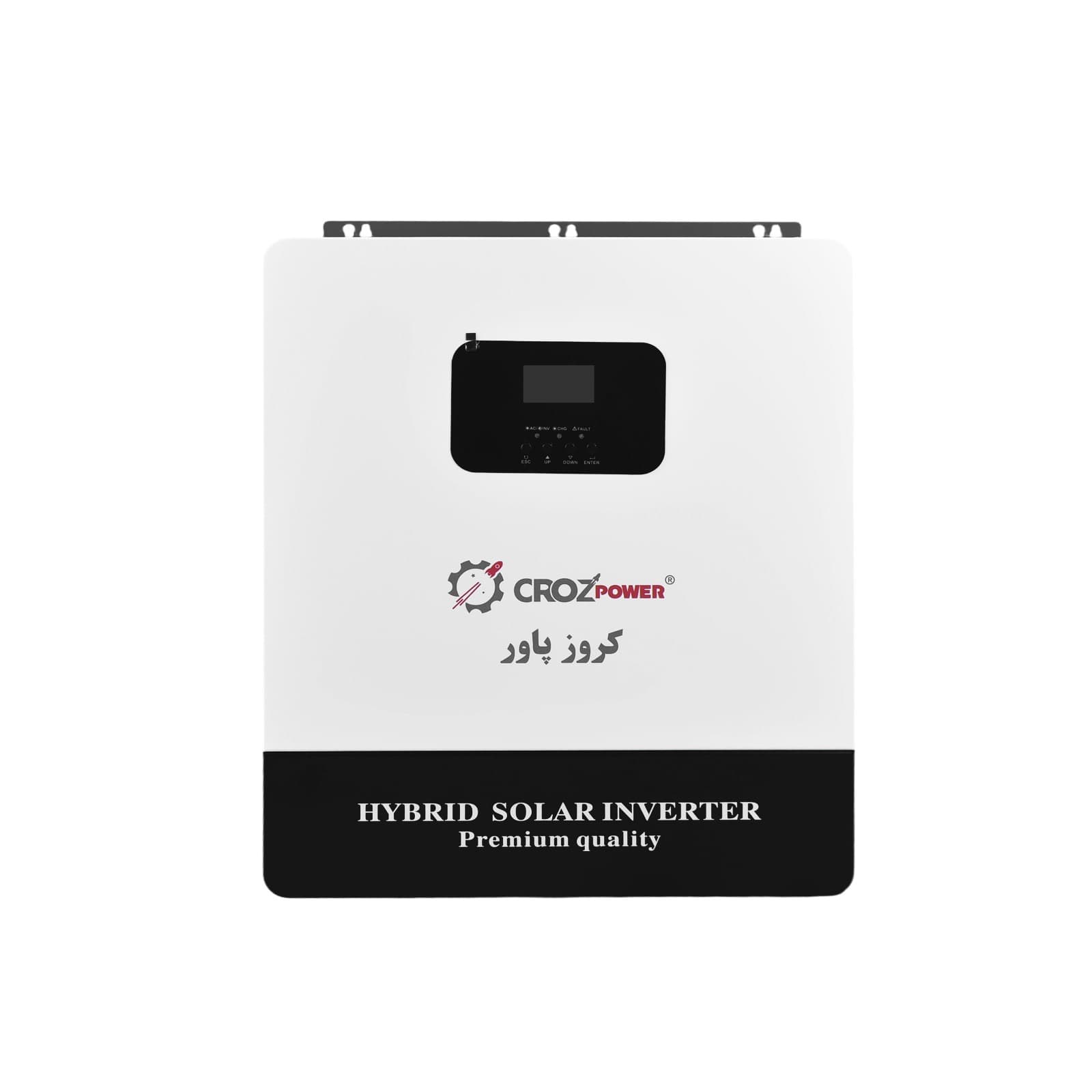

11KW 48V Parallel
CROZPOWER
MODEL:11 KW 48V Parallel j
CAPACITY:11000VA/11000W PV&DC/AC:12000VA/12000W
OPERATING TEMPERATURE RANGE:-10~50C PROTECTION DEGREE:IP21 SOLAR MODE
SOLAR PANEL POWER:2x7500W MAX CHARGING CURRENT:150A MAX INPUT CURRENT:36A/36A
NOMINAL INPUT CURRENT:27A/27A
SOLAR VOLTAGE RANGE(Vmp):90-500VDC FULL LOAD MPPT RANGE:360-430VDC MAX SOLAR VOLTAGE:500VDC INVERTER MODE
BATTERY VOLTAGE RANGE:42-64VDC
MAX BATTERY DISCHARGE CURRENT:228A AC OUTPUT:230VAC,50/60HZ,47.8A 1 AC INPUT
AC CHARGER:54VDC,150A
AC INPUT:230VAC,50/60HZ,60A 1
AC OUTPUT:230VAC,50/60HZ,47.8A 1 TWO LOAD OUTPUT POWER: FULL LOAD:11000W
MAXIMUM MAIN LOAD:11000W
MAXIMUM SECOND LOAD:11000W
SECOND LOAD CUT OFF VOLTAGE:44VDC SECOND LOAD RETURN VOLTAGE:52VDC CODE:95111-300-038
N.W:19.68 KG G.W:23.16 KG
SIZE:698x565x235 MM
HYBRID SOLAR INVERTER
